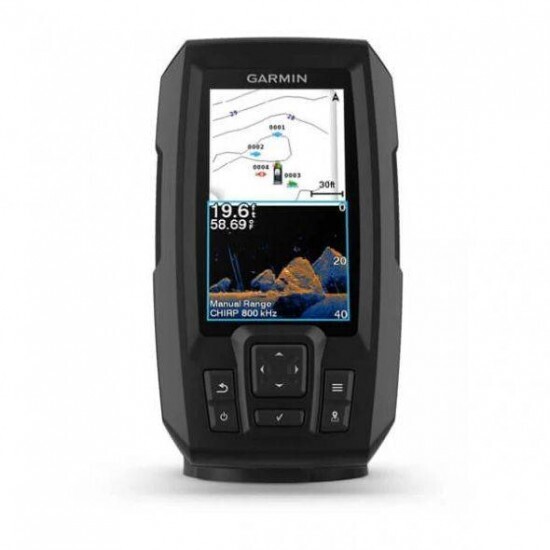

The Striker Vivid 4cv has all the same specs as its predecessor above however it is a new way to see what's under the water. Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 4-inch screen. Use the included GT20-TM transom mount transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVu scanning sonar.
General |
| DIMENSION |
3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm) |
| WEIGHT |
0.7 lbs (0.3 kg) |
| WATERPROOF |
IPX7 |
| DISPLAY TYPE |
QSVGA |
| DISPLAY SIZE |
2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm) |
| DISPLAY RESOLUTION |
272 X 480 pixels |
| MOUNTING OPTIONS |
flush, tilt/swivel |
| INPUT |
Keyed |
Maps & memory |
| WAYPOINTS/FAVOURITES/LOCATIONS |
5000 |
| TRACK POINTS |
50,000 |
| TRACKS |
50 |
| NAVIGATION ROUTES |
100 |
Sensors |
| GPS |
✓ |
| HAS BUILT-IN RECEIVER |
✓ |
| SUPPORTS WAAS |
✓ |
Optional map support |
| GARMIN QUICKDRAW CONTOURS |
✓ |
Electrical features |
| POWER INPUT |
12 to 20 Vdc |
| TYPICAL CURRENT DRAW |
0.40 A |
| MAX CURRENT DRAW |
1.5 A |
| POWER CONSUMPTION |
4.8 |
Sonar features & specifications |
| DISPLAYS SONAR |
✓ |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) |
Built-in |
| CLEARVÜ |
✓ |
| FREQUENCY |
Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz |
| TRANSMIT POWER |
300 W (RMS) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
✓
|
| WATER TEMPERATURE LOG |
✓ |
Connections |
| 4-PIN TRANSDUCER PORTS |
1 |
Fishfinder features |
| SPLIT-SCREEN ZOOM |
✓ |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) |
✓ |
| AUTOGAIN TECHNOLOGY (MINIMISES CLUTTER, MAXIMISES TARGETS) |
✓ |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) |
✓ |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) |
✓ |
| WATER TEMPERATURE SENSOR INCLUDED |
✓ |
| DEPTH RANGE SHADING |
✓ |
Additional |
| ADDITIONAL |
- One 4-pin transducer port
- Quickdraw Contours
- Integrated GPS
- Mark Waypoints
- Course over Ground (COG)
- Current draw @ 12V: 0.40A
|
